Specifications

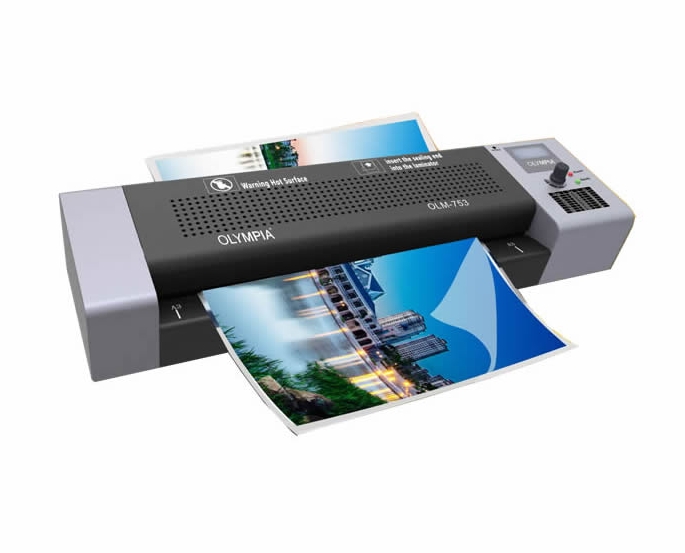

| Model | OLM-753 |
| Rollers | 4 Rollers |
| Material | Metal Machine |
| Display | LCD |
| Entry Width | 336mm |
| Max Lamination Thickness | 0.8mm |
| Lamination Speed | 400+/-5% mm/min |
| Pouch Thickness | 75-250 mic |
| Warm -up | <3min |
| Overheat protection | Overheat Fuse |
| Power Consumption | 1000W |
| Voltage | 220~240V /50/60 Hz |
| Dimension of machine | 472 x 178 x 110mm |
| Dimension of Box | 516 x 218 x 184mm |
| Net Weight | 4.35kg |
| Gross Weight | 4.7kg |
Description
Pouches and temperature Configuration chart :
| mic | g | °C |
| 75 | 80-200 | 110 |
| 80 | 80-200 | 115 |
| 100 | 80-200 | 118 |
| 125 | 80-200 | 126 |
| 150 | 80-200 | 135 |
| 175 | 80-200 | 141 |
| 200 | 80-200 | 151 |
| 250 | 80-200 | 166 |
Features
- On/Off’
- Metal Cover Machine
- LCD Control Panel
- Use with 75mic to 250mic thermal pouch films
- Over Heating protection
- Casing cover can be removed manully
